Permanent magnet DC motor with planetary gearbox 78 rpm

52 mm planetary gearbox and permanent magnet DC motor - 78 rpm

Art. No.: PMM-24V-78RPM On Sale (Available NOW)
340,11€ Excl. VAT
1 × 340,11€/pcs.
425,13€ incl. 25% VAT
Save 10% by joining the Efficiency Club
Pack size
Quantity (number of packs)
= 1 pcs. total
Delivered by xx–xx.yy. Not enough stock available right now
🇩🇪 Ships locally
Products description
This DC planetary gear motor is made of high quality materials. It is suitable for use in heavy duty environments.
This 52mm gearmotor is designed for most low voltage applications, and offers a no-load output speed of 78 rpm.

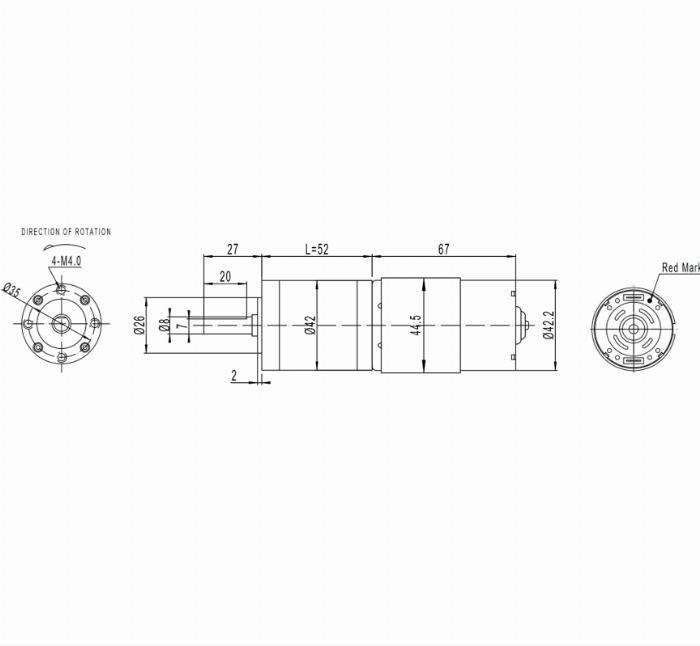

Product data 52mm planetary gearbox and DC motor with 775 permanent magnets at a glance:

Supply voltage: 24 V DC
Rated torque (kg.cm): 50.0 kg.cm max (5Nm)
Maximum momentary tolerance torque (kg.cm): 120.0 kg.cm max (12Nm)
Rpm: 77 U/min +/-10%
Axle diameter: 8 mm
Weight: 750 g (Approx )
Stall torque : 200.0 kg.cm min (20Nm min)
No-load current : 0.8A (1.0A max)
Stall current: 50A max
Files
ZIP

Motedis_PMM-24V-77RPM.zip

Download
