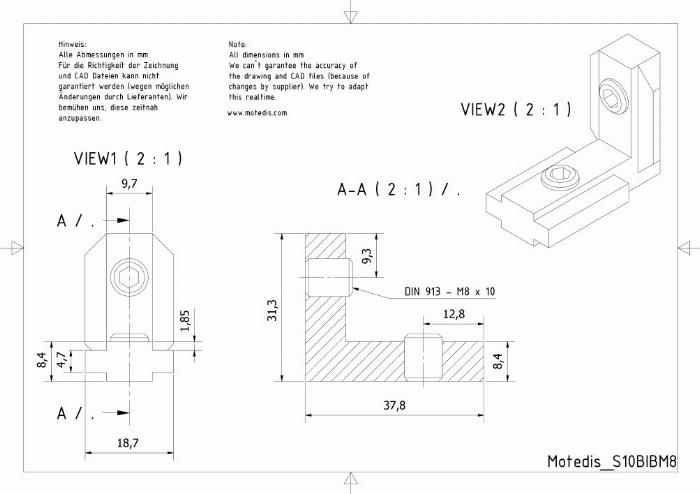

Internal angles Zinc die-cast 45 slot 10 90°

Inner Bracket Zamak Die Cast Slot 10 Alternative

Art. No.: S10BIBM8 On Sale (Best Seller)
78,49€ Excl. VAT
10 × 7,85€/pcs.
98,11€ incl. 25% VAT
Special local overstock price applied Local overstock price for 0 of 0 pcs. - rest at regular price
Save 10% by joining the Efficiency Club
Pack size
Quantity (number of packs)
= 1 pcs. total
Quantity (number of packs)
= 10 pcs. total
Delivered by xx–xx.yy. Not enough stock available right now
🇩🇪 Ships locally
Products description
This inner bracket is the perfect alternative for a 10-groove and is made of high quality die-cast zinc. This metal bracket can be easily fixed during frame construction and convinces by its excellent price-performance ratio. For many aluminium profiles, it is possible to use the inner bracket, which is supplied with two screws. This makes simple fixing possible.
Product data Zinc die-cast inner angle bracket groove 10 Alternative at a glance:

Slot: 10 (Alternative)
Material: die-cast zinc
Suitable for: 45x45L, 45x90L, 45x45 2NVS, 45x45 1N, 45x45 3N, 45x45 2N180°, 45x45 LR, 60x60L, 45x180L.
Screw size: M8x10

Not suitable for profiles 45x45S, 45x90S, 45x180L, 90x90L, 40x40 slot 10, 40x80 slot 10, 40x120 Nut 10, 30x45, 15x22.5, 22.5x45, round tube with slot 10



##https://youtu.be/XOkB-VgLUgQ#Link to Youtube Video : Mounting inner angle##
Files
ZIP

Motedis_S10BIBM8.zip

Download
PDF

Motedis_S10BIBM8-Drawing.pdf

Download
